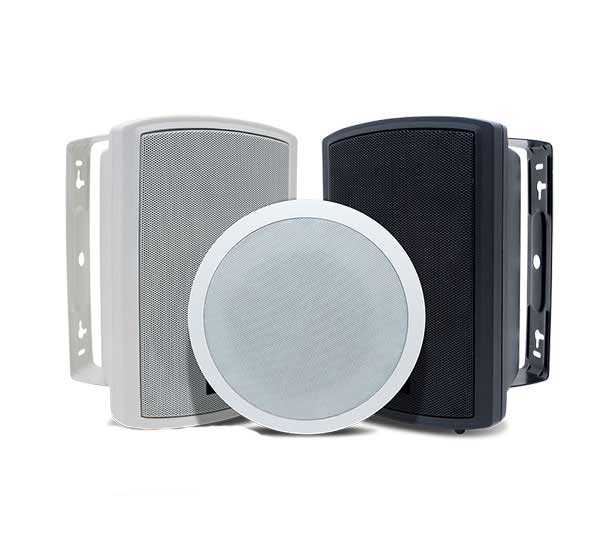

اسپیکر تحت شبکه ۲N

اسپیکر تحت شبکه ۲N

مشخصات فنی اسپیکر تحت شبکه ۲N

۲N Net Speaker– wall-mounted with a console:
Impedance: 8 Ohm
Output: 8WPoE/ 14W 12V
Frequency range: 75 Hz-20 KHz
Sound pressure (SPL 1W/1m): 100 dB
Dimensions (H/W/D): 250 x 176 x 143 mm
Weight: 2.3 kg
Color: black/white
Another passive loudspeaker can be connected
Net Speaker – ceiling installation:
Impedance: 8 Ohm
Output: 8W PoE / 14W 12V
Frequency range: 90 Hz-24 KHz
Sound pressure (SPL 1W/1m): 105 dB
Dimensions (W/D): 250 x 175 mm
Weight: 4.9 kg
Color: white
Audio stream:
Sound compression: MPEG-1 Audio Layer II (MP2)
Bandwidth: 32-320 kbps
Stream: unicast/multicast
Power supply:
External power source: 12V DC / 2A
Power supply from LAN: PoE IEEE 802.3af
