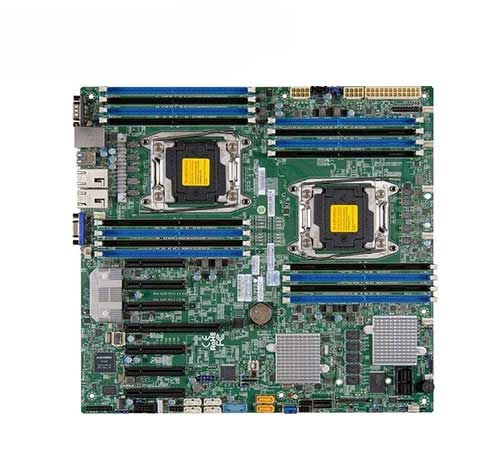

مادربرد سرور سوپرمایکرو X10DRH-C

– Form Factor Motherboard:  E-ATX
– Dimensions:: 30.5cm x 33.2cm
– CPU : ntel® Xeon® processor E5-2600 v3 family , Dual Socket R3 (LGA 2011)
– Cores / Cache: Up to 18 Cores / Up to 45MB Cache
– System Bus: QQPI up to 9.6 GT/s
– Memory Capacity: 16x 288-pin DDR4 DIMM slots
– Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM
– Memory Voltage : 1.2 V
– Chipset: Intel® C612 chipset
– AHCI SATA : SATA3 (6Gbps)
– SCU SATA : SATA3 (6Gbps)
– SAS: LSI 3108 SAS3 (12Gbps) controller
– Network Controllers: Intel® i350 Dual Port Gigabit Ethernet
– Video: ASPEED AST2400 BMC
– SATA: 10x SATA3 (6Gbps) ports
– SAS:  ۸x SAS3 (12Gbps) ports
– LAN: 2x RJ45 Gigabit Ethernet LAN ports
– USB: 5x USB 3.0 ports,4x USB 2.0 ports
– Serial Port / Header: 2x Fast UART 16550 serial
– PCI-Express:1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8
– BIOS Type : 128M-b SPI Flash EEPROM with AMI BIOS
