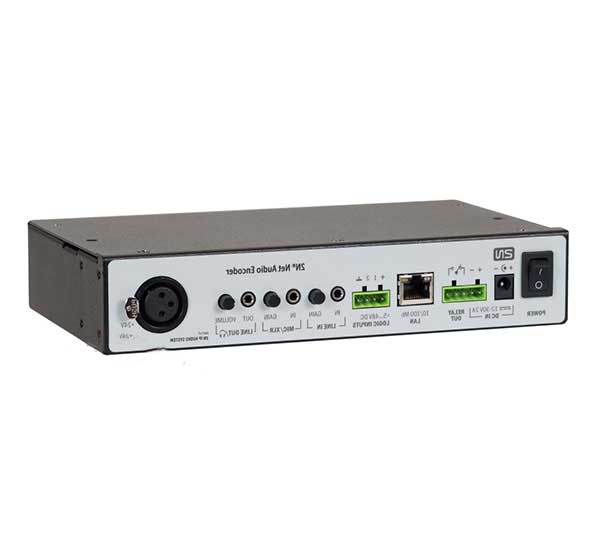

مبدل آنالوگ به آی پی ۲N Net Audio Encoder

مبدل آنالوگ به آی پی ۲N Net Audio Encoder

مشخصات فنی مبدل آنالوگ به آی پی ۲N Net Audio Encoder

Dimensions: 220 x 45 x 140mm
۲N Analoge Audio To IP Signal ConverterInterfaces:
Logic inputs: 2, galvanically isolated, sensitive to contact or current from 5 to 48V
Relay output: 1, galvanically isolated, NO and NC contact, load of max. 48V, 1A
Headphone output: 3.5mm jack, stereo, output of 2 x 30mW, min. impedance of 16Ohm, DR 101dB, THD+N -85dB
Main microphone input: symmetrical, XLR, integrated phantom power supply 24V, DR 88dB, THD+N -82dB
Microphone input for headset: 3.5mm jack, integrated power supply for electret microphones, DR 84dB, THD+N -78dB
Line input: 3.5mm jack, symmetrical mono or asymmetrical stereo, DR 93dB, THD+N -82dB
Power supply:
۱۲ to 32V, max. 1A
PoE in accordance with 802.3af standard
Audio stream: PCM, 44,100 kHz, 16bit, Stereo (1650 kbps)
Operating temperature: 32-104°F
Operating humidity: 10-95% (non-condensing)
