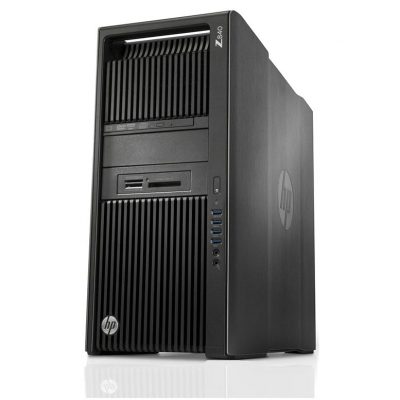

ورک استیشن اچ پی Z840

مشخصات فنی ورک استیشن اچ پی Z840

Manufacture Year(s) 2015 – early 2018
Form Factor Rackable tower
Processor Family Intel® Xeon® E5 2600 v4 processor
Intel® Xeon® E5 2600 v3 processor
Processors Intel® Xeon® E5-2699 v4 (2.2 GHz, 55 MB cache, 22 cores, Intel® vPro™)
Intel® Xeon® E5-2697 v4 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™)
Intel® Xeon® E5-2696 v4 (2.2 GHz, 55 MB cache, 22 cores, Intel® vPro™)
Intel® Xeon® E5-2695 v4 (2.1 GHz, 45 MB cache, 18 cores, Intel® vPro™)
Intel® Xeon® E5-2690 v4 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2683 v4 (2.1 GHz, 40 MB cache, 16 cores, Intel® vPro™)
Intel® Xeon® E5-2680 v4 (2.4 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2667 v4 (3.2 GHz, 25 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2660 v4 (2 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2650 v4 (2.2 GHz, 30 MB cache, 12 cores, Intel® vPro™)
Intel® Xeon® E5-2643 v4 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™)
Intel® Xeon® E5-2640 v4 (2.4 GHz, 25 MB cache, 10 cores, Intel® vPro™)
Intel® Xeon® E5-2637 v4 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™)
Intel® Xeon® E5-2630 v4 (2.2 GHz, 25 MB cache, 10 cores, Intel® vPro™)
Intel® Xeon® E5-2623 v4 (2.6 GHz, 10 MB cache, 4 cores, Intel® vPro™)
Intel® Xeon® E5-2620 v4 (2.1 GHz, 20 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2609 v4 (1.7 GHz, 20 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2603 v4 (1.7 GHz, 15 MB cache, 6 cores, Intel® vPro™)
Intel® Xeon® E5-2699 v3 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™)
Intel® Xeon® E5-2697 v3 (2.6 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2696 v3 (2.3 GHz, 45 MB cache, 18 cores, Intel® vPro™)
Intel® Xeon® E5-2695 v3 (2.3 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2690 v3 (2.6 GHz, 30 MB cache, 12 cores, Intel® vPro™)
Intel® Xeon® E5-2687W v3 (3.1 GHz, 25 MB cache, 10 cores, Intel® vPro)
Intel® Xeon® E5-2683 v3 (2.0 GHz, 35 MB cache, 14 cores, Intel® vPro™)
Intel® Xeon® E5-2680 v3 (2.5 GHz, 30 MB cache, 12 cores, Intel® vPro™)
Intel® Xeon® E5-2670 v3 (2.3 GHz, 30 MB cache, 12 cores, Intel® vPro™)
Intel® Xeon® E5-2667 v3 (3.2 GHz, 20 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2660 v3 (2.6 GHz, 25 MB cache, 10 cores, Intel® vPro™)
Intel® Xeon® E5-2650 v3 (2.3 GHz, 25 MB cache, 10 cores, Intel® vPro™)
Intel® Xeon® E5-2643 v3 (3.4 GHz, 20 MB cache, 6 cores, Intel® vPro™)
Intel® Xeon® E5-2640 v3 (2.6 GHz, 20 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2637 v3 (3.5 GHz, 15 MB cache, 4 cores, Intel® vPro™)
Intel® Xeon® E5-2630 v3 (2.4 GHz, 20 MB cache, 8 cores, Intel® vPro™)
Intel® Xeon® E5-2623 v3 (3.0 GHz, 10 MB cache, 4 cores, Intel® vPro™)
Intel® Xeon® E5-2620 v3 (2.4 GHz, 15 MB cache, 6 cores, Intel® vPro™)
Intel® Xeon® E5-2609 v3 (1.9 GHz, 15 MB cache, 6 cores, Intel® vPro™)
Intel® Xeon® E5-2603 v3 (1.6 GHz, 15 MB cache, 6 cores, Intel® vPro™)
Chipset Intel® C612
Memory 16 DIMM slots, up to 1TB, 8-channel ECC DDR4, 4 channels per CPU
Memory speed: 2133MHz with v3 processor and 2400MHz with v4 processor
Registered and load-reduced DIMMS may not be mixed.
۸ DIMM slots with 1 processor and 16 DIMM slots with 2 processors
Drive Bays Total Bays = 7
۴ Internal 3.5″ storage bays (All 4 include acoustic dampening rail assemblies)
۲ Internal 5.25″ bays
۱ Internal Slim-line Optical bay
Internal Storage 1TB/2TB/4/TB/6TB 7200rpm SATA3 Hard Drive (Western Digital)
۸TB/10TB 5400rpm SATA3 Hard Drive (Western Digital)
۲۵۰GB/500GB/1TB/2TB/4TB SATA3 Solid-State Drive (Samsung)
۲۵۶GB/512GB/1TB/2TB HP Z Turbo Drive (Samsung 960 NVMe PCIe SSD)
۲۵۶GB up to 8TB HP Z Turbo Quad Pro (Up to Four Samsung 960 NVMe PCIe SSD)
Optical Storage Slim SATA SuperMulti DVD writer
SATA Blu-ray reader
SATA Blu-ray writer
Additional Storage HP 15-in-1 media card reader (optional)
HP 8-Bay SAS-SATA 2.5in High Density Storage Kit (optional)
Available Graphics NVIDIA Quadro – K2200 4GB; K4200 4GB, K5200 8GB, K6000 12GB
NVIDIA Quadro – M2000 4GB, M4000 8GB, M5000 8GB, M6000 12GB/24GB
NVIDIA Quadro – P4000 8GB; P5000 16GB; P6000 24GB; GP100 16GB
NVIDIA GTX – 1070 8GB; 1080 8GB; 1080Ti 11GB; Titan Xp 12GB; Titan V 24GB (Volta)
NVIDIA Tesla – K20 5GB; K40 12GB (Active Cooling)
NVIDIA NVS – 310; 315; 510; 810
I/O Controller HP Thunderbolt 2 PCIe 1-port I/O Card (optional)
FireWire 800 PCIe 3-port (optional)
USB-C PCIe 2-port (optional)
Audio Integrated IDT 92HD94 audio
Communications Integrated Intel® I218LM PCIe GbE
Intel® I210-T1 PCIe GbE (optional)
HP X540-T2 10GbE RJ45 Dual Port Adapter (optional)
HP X520-DA2 10GbE SFP+ Dual Port Adapter (optional)
HP 10 GbE SFP+SR Transceiver (optional)
HP 361T PCIe dual-port gigabit (optional)
Intel® ۷۲۶۰ ۸۰۲٫۱۱ a/b/g/n PCIe WLAN (optional)
Intel® ۸۲۶۰ ۸۰۲٫۱۱ a/b/g/n/ac with BlueTooth® ۴٫۲ PCIe NIC (optional)
Expansion Slots Slot 1: PCIe Gen3 x4
Slot 2: PCIe Gen3 x16
Slot 3: PCIe Gen3 x8 – Available ONLY when 2nd processor is installed
Slot 4: PCIe Gen3 x16 – Available ONLY when 2nd processor is installed
Slot 5: PCIe Gen2 x4 when 1 CPU is installed. Transforms to PCIe Gen3 x8 when 2nd CPU is installed. The PCIe x8 connectors are open ended, allowing a PCIe x16 card to be seated in the slot.
Slot 6: PCIe Gen3 x16
Slot 7: PCIe Gen2 x1
Ports and Connectors Front: 4 USB 3.0; 1 combo headset; 1 microphone
Rear: 4 USB 3.0; 2 USB 2.0; 1 serial; 2 PS/2; 2 RJ-45; 1 audio line in; 1 audio line out
Internal: 2 USB 2.0; 1 USB 3.0Internal USB 2.0 available by the 2×5 header. Internal USB 3.0 available by the 2×10 header.
Power 1125 W 90% efficient, wide-ranging, active PFC
Dimensions (H x W x D) 8 x 20.7 x 17.5 in
۲۰٫۳ x 52.5 x 44.4 cm
Weight 46.7 lb
۲۱٫۱ kg
(Exact weight depends upon configuration.)
Energy Efficiency Compliance ENERGY STAR® qualified and EPEAT® registered configurations available
