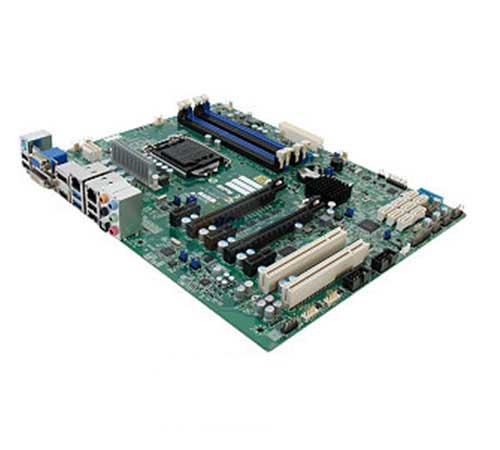

مادربرد سرور سوپرمایکرو X10SAE

– Brand: SUPERMICRO
– Model: MBD-X10SAE-O
– CPU Socket Type: LGA 1150
– CPU Type: Intel Xeon E3-1200 v3 and 4th Gen Core i3/i5/i7, Pentium, Celeron
– Chipsets North Bridge: Intel C226
– Memory Number of DDR3 Slots: 4 x 240pin
– Memory DDR3 Standard: DDR3 1600
– PCI Express 3.0 x16: 2x PCI-E 3.0 x16 slots – Function as: 16/NA or 8/8
– PCI Express x1: 3x PCI-E 2.0 x1 (in x4) slots
– PCI Slots: 2x PCI 5V 32-bit slots
– SATA: 6 x SATA 6.0Gb/s
– SATA RAID: 0/1/5/10
– Additional SATA: 2 x SATA 6.0Gb/s
– LAN Chipset: Intel I210-AT
– LAN Speed: 10/100/1000Mbps
– Video Ports: 1 VGA , 1 HDMI, 1 DVI, and 1 Display ports
– Audio Ports: 7.1 HD port
