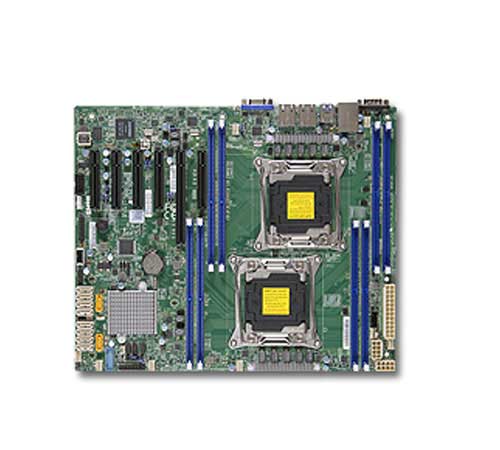

مادربرد سرور سوپرمایکرو MBD-X10DRL-I

– Form Factor : ATX
– Dimensions : 30.48cm x 25.4cm
– CPU: Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP)
– Dual Socket R3 (LGA 2011)
– Cores / Cache : Up to 18 Cores / Up to 45MB Cache
– System Bus : QPI up to 9.6 GT/s
– Memory Capacity : 8x 288-pin DDR4 DIMM slots,Up to 512GB,ECCLRDIMM,256GB ECC RDIMM
– Memory Type : 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
– Memory Voltage : 1.2 V
– Chipset :  Intel® C612 Express chipset
– AHCI SATA : SATA3 (6Gbps)
– SCU SATA : SATA3 (6Gbps)
– SATA :10x SATA3 (6Gbps) ports
– LAN : 2x RJ45 Gigabit Ethernet LAN ports,1x RJ45 Dedicated IPMI LAN port
– USB :  ۴x USB 3.0 ports ,5x USB 2.0 ports
– Video :1x VGA port
– Serial Port / Header : 2x Fast UART 16550 port / 1 Header
– TPM : 1x TPM 1.2 20-pin Header
