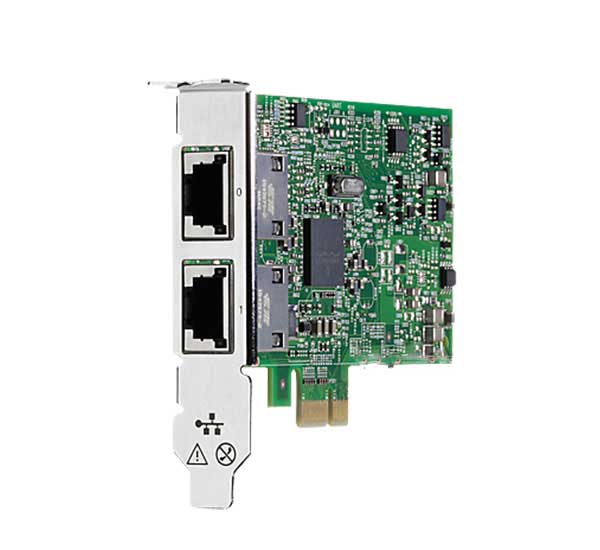

کارت شبکه سرور اچ پی ۲port 332T 615732-B21

مشخصات فنی کارت شبکه سرور اچ پی ۲port 332T 615732-B21

• Dimensions: 5.72 x 24.13 x 19.05 cm
• HP Sever Adapter Weight: 0.45 kg
• Network processor:  Broadcom NetXtreme BCM5720 chipset
• Data rate:
  • Two ports, each at 1 Gbps full duplex (2 Gbps aggregate per port)
  • ۴ Gbps aggregate full duplex theoretical bandwidth.
  • Bus type: PCIe 2.0
  • Form factor:  PCIe Card
  • Power:
  • ۲٫۲W (1000Base-T, both ports, maximum traffic)
  • ۲٫۱W (1000Base-T, both ports, idle, without EEE link partner)
  • ۱٫۷W (1000Base-T, both ports, idle, EEE link partner)
  • ۰٫۶W (AUX power with WoL)
• Server type supported:  ProLiant servers
• IEEE compliance: 802.3,802.3u,802.3ab,802.3x,802.3ad,802.1p, 802.1q, 802.3az, 1588,802.1as
• Compatible operating systems:
  • Microsoft Windows 2008, Server 2008, Microsoft Windows HPC Server 2008
  • Red Hat Enterprise Linux 5.7 and 6.1 (AMD64/EM64T)
  • SUSE Linux Enterprise Server 10 and 11 (AMD64/EM64T)
  • Oracle Solaris 10
  • VMware
  • Microsoft Windows Hyper-V
  • Product differentiator: Single-chip, dual-port, 1Gb Ethernet adapter
